E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振

E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振，尺寸5.0x3.2mm，频率16MHZ，台湾无源晶振，无源贴片晶振，SMD晶振，水晶振动子，SMD晶体谐振器，贴片陶瓷晶振，5032mm贴片晶振，两脚贴片晶振，无源晶振，陶瓷谐振器，智能手机专用晶振，数字视频晶振，测试设备晶振，多媒体设备晶振，娱乐设备晶振，小型设备晶振，无线网络晶振，低功耗晶振，轻薄型晶振，高质量晶振，高品质晶振，具有轻薄型高质量的特点。

陶瓷谐振器产品主要主要解决方案为DIP型晶体设计寻求考虑，适合用于智能手机，数字视频，多媒体设备，娱乐设备，小型设备，无线网络，测试设备等领域。E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振.

E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振 参数表

Item Frequency Range	Type F0	E5FA
		16MHz	10 to 11.999MHz	12 to 23.999MHz	24 to 54.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	10pF to Series
Frequency Tolerance	ΔF/ F0	±10ppm,±30ppm,±50ppm(At 25℃)
EquivalentSeries Resistance	ESR	120Ωmax.	80Ωmax.	50Ωmax.	30Ωmax.
Temperature Stability	TC	±10ppm,±30ppm,±50ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	7pF max.
Insulator Resistance	IR	500MΩmin. (At 100VDC)
Drive Level	DL	100μW(300μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		1000pcs/reel

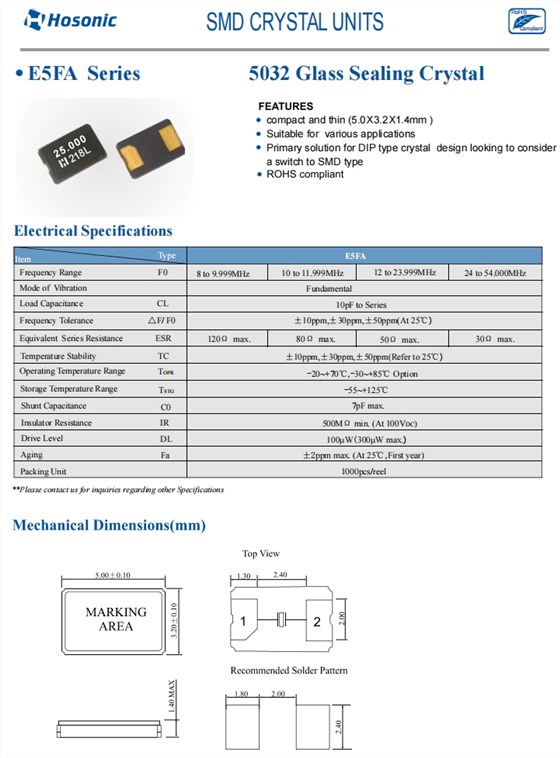

E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振 尺寸图

E5FA16E000000DE,测试设备6G晶振,鸿星高质量晶振

产品特点：

紧凑而薄(5 × 3.2 × 1.4mm)

适用于各种应用

主要解决方案为DIP型晶体设计寻求考虑

a切换到SMD晶体类型

Mfr Part #	Supplier	Series	Frequency	Frequency Stability稳定度	Frequency Tolerance	Load Capacitance
E2SB40E000104ECBB8	Hosonic鸿星晶振	E2SB	40 MHz	±10ppm	±7ppm	12pF
E2SB38E0X0300E	Hosonic鸿星晶振	E2SB	38.4 MHz	±10ppm	±10ppm	8pF
E2SB40E000107E	Hosonic鸿星晶振	E2SB	40 MHz	-12ppm, +20ppm	±5ppm	12pF
E2SB40E00010AE	Hosonic鸿星晶振	E2SB	40 MHz	±10ppm	±7ppm	7pF
E1SB24E00001EE	Hosonic鸿星晶振	E1S	24 MHz	±30ppm	±30ppm	18pF
E1SB60E003701E	Hosonic鸿星晶振	E1S	60 MHz	±20ppm	±10ppm	9pF
E2SB27E0X0000E	Hosonic鸿星晶振	E2SB	27.12 MHz	±10ppm	±10ppm	8pF
E2SB24E001801E	Hosonic鸿星晶振	E2SB	24 MHz	±20ppm	±20ppm	12pF
E2SB40E000108E	Hosonic鸿星晶振	E2SB	40 MHz	±15ppm	±7ppm	6pF
ETSB37E0X0014E	Hosonic鸿星晶振	ETSB	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星晶振	ETSB	38.4 MHz	±10ppm	±10ppm	10pF
E1SB25E000009E	Hosonic鸿星晶振	E1S	25 MHz	±30ppm	±30ppm	6pF
E1SB24E004000E	Hosonic鸿星晶振	E1S	24 MHz	±10ppm	±10ppm	18pF
E1SB38E0X0001E	Hosonic鸿星晶振	E1S	38.4 MHz	±10ppm	±10ppm	10pF
E1SB40E00090AECBB8	Hosonic鸿星晶振	E1S	40 MHz	±20ppm	±10ppm	12pF
E1SB48E000506E	Hosonic鸿星晶振	E1S	48 MHz	±16ppm	±8ppm	11.1pF
E1SB25E001000E	Hosonic鸿星晶振	E1S	25 MHz	±30ppm	±30ppm	18pF
E2SB12E000005E	Hosonic鸿星晶振	E2SB	12 MHz	±20ppm	±20ppm	12pF
E1SB37E0X0002E	Hosonic鸿星晶振	E1S	37.4 MHz	±10ppm	±10ppm	16pF
E1SB32E001501ECBB8	Hosonic鸿星晶振	E1S	32 MHz	±10ppm	±10ppm	9pF
ETSB24E000003E	Hosonic鸿星晶振	ETSB	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星晶振	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鸿星晶振	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鸿星晶振	ETSB	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星晶振	ETSB	60 MHz	±20ppm	±10ppm	9pF
E2SB16E00000ME	Hosonic鸿星晶振	E2SB	16 MHz	±30ppm	±30ppm	12pF
E2SB26E001201E	Hosonic鸿星晶振	E2SB	26 MHz	±13ppm	±5ppm	9pF
E2SB32E001201E	Hosonic鸿星晶振	E2SB	32 MHz	±10ppm	±10ppm	12pF
ETSB27E0X0003E	Hosonic鸿星晶振	ETSB	27.12 MHz	±10ppm	±10ppm	10pF
ETSB25E004800E	HOSONIC晶振	ETSB	25 MHz	±15ppm	±10ppm	8pF
E2SB32E00000LE	Hosonic鸿星晶振	E2SB	32MHz	±10ppm		9pF
E5FA8E000000DE	Hosonic鸿星晶振	E5FA	8MHz	±20ppm		20pF
E5SB8E0000000E	Hosonic鸿星晶振	E5SB	8MHz	±10ppm		10pF
E5SB8E0000015E10C0	Hosonic鸿星晶振	E5SB	8MHz			10pF
E2SB37E0X0002E	Hosonic鸿星晶振	E2SB	37.4MHz	±10ppm		10pF
E2SB24E000016E	Hosonic鸿星晶振	E2SB	24MHz	±10ppm		20pF
E2SB54E000000E	Hosonic鸿星晶振	E2SB	54MHz	±10ppm		10pF
E2SB48E000009E	Hosonic鸿星晶振	E2SB	48MHz	±10ppm		12pF
E2SB50E00000EE	Hosonic鸿星晶振	E2SB	50MHz	±14ppm		19pF
E2SB37E0X0004E	Hosonic鸿星晶振	E2SB	37.4MHz	±10ppm		12pF
E2SB40E000007E	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		10pF
E2SB40E000003E	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		8pF
E2SB24E00001NE	Hosonic鸿星晶振	E2SB	24MHz	±15ppm		16pF
E2SB40E00000RE	Hosonic鸿星晶振	E2SB	40MHz	±30ppm		20pF
E2SB38E0X0007E	Hosonic鸿星晶振	E2SB	38.400MHz	±10ppm		10pF
E2SB54E000009E	Hosonic鸿星晶振	E2SB	54MHz	±5ppm		19pF
E2SB26E00000GE	Hosonic鸿星晶振	E2SB	26MHz	±10ppm		16pF
E2SB26E000007E	Hosonic鸿星晶振	E2SB	26MHz	±10ppm		9pF
E2SB40E000006E	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		10pF
E2SB40E00000EE	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		15pF
E2SB26E00000DE	Hosonic鸿星晶振	E2SB	26MHz	±10ppm		12pF
E2SB50E00000CE	Hosonic鸿星晶振	E2SB	50MHz	±10ppm		8pF
E2SB48E000004E	Hosonic鸿星晶振	E2SB	48MHz	±10ppm		10pF
E2SB16E000014E	Hosonic鸿星晶振	E2SB	16MHz	±10ppm		16pF
E2SB40E000009E	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		12pF
E2SB26E000005E	Hosonic鸿星晶振	E2SB	26.000MHz	±10ppm		9PF
E2SB12E00000CE	Hosonic鸿星晶振	E2SB	12MHz	±20ppm		18pF
E2SB16E000007E	Hosonic鸿星晶振	E2SB	16MHz	±10ppm		10pF
E2SB16E00000VE	Hosonic鸿星晶振	E2SB	16MHz	±10ppm		12pF
E2SB27E00000KE	Hosonic鸿星晶振	E2SB	27MHz	±10ppm		10pF
E2SB40E00000WE	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		9pF
E2SB16E000003E	Hosonic鸿星晶振	E2SB	16MHz	±10ppm		9pF
E2SB27E00000EE	Hosonic鸿星晶振	E2SB	27.000MHz	±10ppm		20pF
E2SB32E000018E	Hosonic鸿星晶振	E2SB	32MHz	±10ppm		10pF
E2SB26E000103E	Hosonic鸿星晶振	E2SB	26MHz	±10ppm		7.5pF
E2SB40E00000JE	Hosonic鸿星晶振	E2SB	40MHz	±10ppm		12pF
E2SB12E000014E	Hosonic鸿星晶振	E2SB	12MHz	±10ppm		20pF
E2SB38E0X000HE	Hosonic鸿星晶振	E2SB	38.4MHz	±10ppm		12pF
E2SB24E00000LE	Hosonic鸿星晶振	E2SB	24.000MHz	±10ppm		12PF
E49B8E000001AE	Hosonic鸿星晶振	E49B	8MHz	±20ppm		20pF
E2SB24E00000ZE	Hosonic鸿星晶振	E2SB	24MHz	±10ppm		9pF
E5SB8.00000F10E11	Hosonic鸿星晶振	E5SB	8MHz	10ppm		10pF
E2SB27E0X000CE	Hosonic鸿星晶振	E2SB	27.12MHz	±10ppm		10pF
E49B13E0X000FE10C0	Hosonic鸿星晶振	E49B	13.560MHz	±20ppm		20PF
E5FA8.00000F20E22	Hosonic鸿星晶振	E5FA	8MHz	±20ppm		20PF
E49B4E000000VE10C0	Hosonic鸿星晶振	E49B	4MHz	±20ppm		20PF
E5FA8.00000F20E11	Hosonic鸿星晶振	E5FA	8MHz
E49B11E0X000YE10C0	Hosonic鸿星晶振	E49B	11.0592MHz	±20ppm		20pF
E49A8E00000FE10CO	Hosonic鸿星晶振	E49A	8MHz	±20ppm		20pF
E49A16E00000KE10CO	Hosonic鸿星晶振	E49A	16M	±20ppm		20pF
E49A25E000033E	Hosonic鸿星晶振	E49A	20pF	±30ppm		20pF
E49A8E000001CE	Hosonic鸿星晶振	E49A				10pF
E49B10E00000TE	Hosonic鸿星晶振	E49B	10MHZ			10pF
E49B4E00X000ZE	Hosonic鸿星晶振	E49B				10pF
E49B8E00X000CE	Hosonic鸿星晶振	E49B				10pF
