思佳讯5032差分晶振,Si515车载娱乐晶振,515FCA200M000BAG

频率：200MHZ

尺寸：5.0x3.2mm

思佳讯5032差分晶振,Si515车载娱乐晶振,515FCA200M000BAG，尺寸5.0×3.2mm，频率200MHZ，输出逻辑LVDS，电压2.5V，频率稳定性10ppm，欧美进口晶振，Skyworks Electronics，思佳讯有源晶振，Skyworks压控振荡器，LVDS输出晶振，有源压控晶振，差分有源振荡器，差分压控振荡器，VCXO压控晶体振荡器，5032mm压控晶振，六脚差分晶振，差分晶体振荡器，贴片差分晶振，LVDS差分输出晶振，高频差分晶振，高质量差分晶振，低耗能差分晶振，低电压差分晶振，低抖动差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，车载娱乐差分晶振，北斗导航差分晶振，智能穿戴差分晶振，移动通信差分晶振，无线局域网差分晶振，航空电子差分晶振，物联网差分晶振，具有低抖动低功耗的特点。差分晶振产品常常用于车载娱乐，北斗导航，智能穿戴，移动通信，无线局域网，航空电子，物联网等领域.思佳讯5032差分晶振,Si515车载娱乐晶振,515FCA200M000BAG.

订购热线：0755-27838351

思佳讯5032差分晶振,Si515车载娱乐晶振,515FCA200M000BAG 参数表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	24	29	mA
		LVDS (output enabled)	—	22	26	mA
		LVPECL (output enabled)	—	42	46	mA
		HCSL (output enabled)	—	44	47	mA
		Tristate (output disabled)	—	—	22	mA
OE “1” Setting	VIH	See Note	0.80 x V DD	—	—	V
OE “0” Setting	VIL	See Note	—	—	0.20 x V DD	V
OE Internal Pull-Up/ Pull-Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Range

0.1 x V DD

V DD/2

0.9 x V DD

Control Voltage Tuning Slope
(10 to 90% V DD)

Positive slope,
ordering option

60, 90, 120, 150

ppm/V

Kv Variation

Kv_var

—

±10

Control Voltage Linearity

LVC

BSL

–5

±1

Modulation Bandwidth

—

kHz

Vc Input Impedance

Z VC

—

100

—

kΩ

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

212.5

MHz

LVDS/LVPECL/HCSL

200

MHz

Temperature Stability

TA = –40 to +85 oC

–20

—

+20

ppm

Aging

Frequency drift over 10 year life

—

±8.5

ppm

Minimum Absolute Pull Range

APR

Ordering option

±30, ±50,±80, ±100

ppm

Startup Time

TSU

Minimum V DD to output fre-
quency (FO) within specification

—

Disable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

Enable Time

FO > 10 MHz

—

µs

FO< 10 MHz

µs

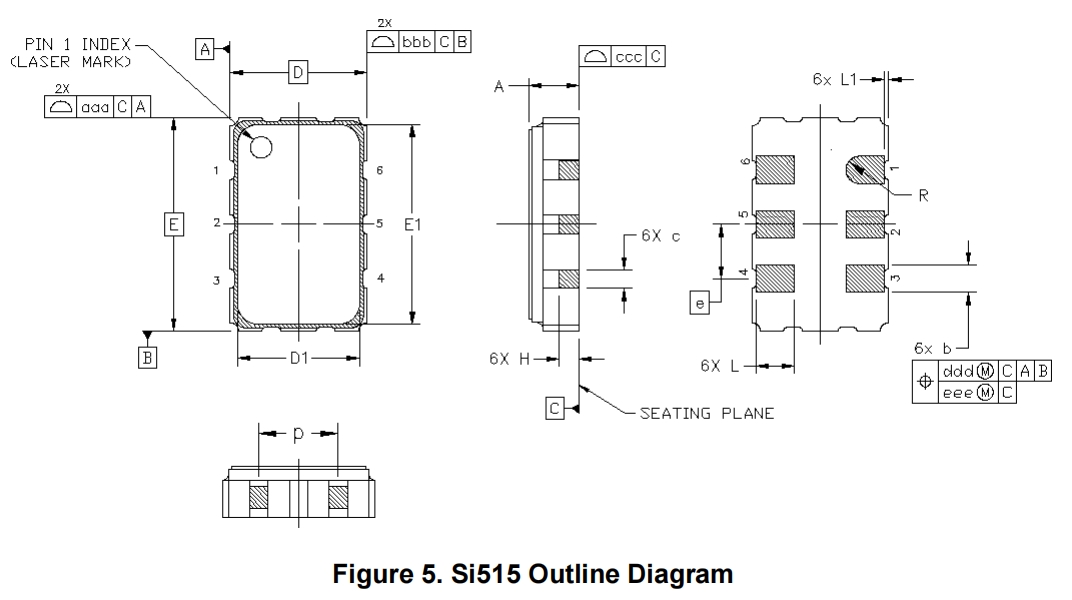

思佳讯5032差分晶振,Si515车载娱乐晶振,515FCA200M000BAG 尺寸图

思佳讯5032差分晶振,Si515车载娱乐晶振,515FCA200M000BAG

OSC晶振产品特点：

支持来自的任何频率100kHz至250MHz

低抖动操作

交付周期短：<2周

AT切基模晶体确保高可靠性/低老化

高电源噪声抑制

1%控制电压线性

可用CMOS、LVPECL、LVDS，和HCSL输出

可选集成1:2 CMOS扇出缓存

3.3和2.5 V电源选项

行业标准5x7、3.2x5和2.5x3.2 mm包装

无铅/符合RoHS

可选择的Kv（60、90、120，150ppm/V）

Si515 2

Mfr Part #	欧美晶振	Description	Series	Frequency	Output
515ACA77M7600AAG	Skyworks有源晶振	XTAL OSC VCXO 77.7600MHZ LVPECL	Si515	77.76 MHz	LVPECL
515ACAM614400AAG	Skyworks有源晶振	XTAL OSC VCXO 6.1440MHZ LVPECL	Si515	6.144 MHz	LVPECL
515BCA10M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVDS	Si515	10 MHz	LVDS
515BCB70M6560AAG	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ LVDS	Si515	70.656 MHz	LVDS
515BDA27M0000AAG	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVDS	Si515	27 MHz	LVDS
515AAA125M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVPECL	Si515	125 MHz	LVPECL
515AAA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVPECL	Si515	25 MHz	LVPECL
515AAA7M10000AAGR	Skyworks有源晶振	XTAL OSC VCXO 7.1000MHZ LVPECL	Si515	7.1 MHz	LVPECL
515ABA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVPECL	Si515	25 MHz	LVPECL
515ABA80M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 80.0000MHZ LVPECL	Si515	80 MHz	LVPECL
515ACA106M250AAGR	Skyworks有源晶振	XTAL OSC VCXO 106.2500MHZ LVPECL	Si515	106.25 MHz	LVPECL
515ACA10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL
515ACA10M7000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.7000MHZ LVPECL	Si515	10.7 MHz	LVPECL
515ACA54M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 54.0000MHZ LVPECL	Si515	54 MHz	LVPECL
515ACAM100000AAGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000KHZ LVPECL	Si515	100 kHz	LVPECL
515ACB10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVPECL	Si515	10 MHz	LVPECL
515ACB44M1000AAGR	Skyworks有源晶振	XTAL OSC VCXO 44.1000MHZ LVPECL	Si515	44.1 MHz	LVPECL
515ADA50M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 50.0000MHZ LVPECL	Si515	50 MHz	LVPECL
515BAA125M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVDS	Si515	125 MHz	LVDS
515BAA25M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 25.0000MHZ LVDS	Si515	25 MHz	LVDS
515BBA100M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ LVDS	Si515	100 MHz	LVDS
515BBA122M880AAGR	Skyworks有源晶振	XTAL OSC VCXO 122.8800MHZ LVDS	Si515	122.88 MHz	LVDS
515BBA70M6560AAGR	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ LVDS	Si515	70.656 MHz	LVDS
515BBA74M2500AAGR	Skyworks有源晶振	XTAL OSC VCXO 74.2500MHZ LVDS	Si515	74.25 MHz	LVDS
515BBB70M6560AAGR	Skyworks有源晶振	XTAL OSC VCXO 70.6560MHZ LVDS	Si515	70.656 MHz	LVDS
515BCA100M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 100.0000MHZ LVDS	Si515	100 MHz	LVDS
515BCA105M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 105.0000MHZ LVDS	Si515	105 MHz	LVDS
515BCA106M250AAGR	Skyworks有源晶振	XTAL OSC VCXO 106.2500MHZ LVDS	Si515	106.25 MHz	LVDS
515BCA27M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 27.0000MHZ LVDS	Si515	27 MHz	LVDS
515BDA30M7200AAGR	Skyworks有源晶振	XTAL OSC VCXO 30.7200MHZ LVDS	Si515	30.72 MHz	LVDS
515EDA125M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 125.0000MHZ LVPECL	Si515	125 MHz	LVPECL
515EDA50M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 50.0000MHZ LVPECL	Si515	50 MHz	LVPECL
515FCA10M0000AAGR	Skyworks有源晶振	XTAL OSC VCXO 10.0000MHZ LVDS	Si515	10 MHz	LVDS
515ABA70M6560AAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	70.656 MHz	LVPECL
515BCA20M0000AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED	Si515	20 MHz	LVDS
515FCA26M0000AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	26 MHz	LVDS
515BCB125M000AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	125 MHz	LVDS
515ABA40M0000AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	40 MHz	LVPECL
515ACA40M0000AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	40 MHz	LVPECL
515AAA174M687BAG	Skyworks有源晶振	XTAL OSC VCXO 174.6870MHZ LVPECL	Si515	174.687 MHz	LVPECL
515AAA174M703BAG	Skyworks有源晶振	XTAL OSC VCXO 174.7030MHZ LVPECL	Si515	174.703 MHz	LVPECL
515ABB212M500BAG	Skyworks有源晶振	XTAL OSC VCXO 212.5000MHZ LVPECL	Si515	212.5 MHz	LVPECL
515ABB250M000BAG	Skyworks有源晶振	XTAL OSC VCXO 250.0000MHZ LVPECL	Si515	250 MHz	LVPECL
515ACA250M000BAG	Skyworks有源晶振	XTAL OSC VCXO 250.0000MHZ LVPECL	Si515	250 MHz	LVPECL
515BAA000123BAG	Skyworks有源晶振	XTAL OSC VCXO 123.0000KHZ LVDS	Si515	123 kHz	LVDS
515BCA180M000BAG	Skyworks有源晶振	XTAL OSC VCXO 180.0000MHZ LVDS	Si515	180 MHz	LVDS
515BCA200M000BAG	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVDS	Si515	200 MHz	LVDS
515FBA180M000BAG	Skyworks有源晶振	XTAL OSC VCXO 180.0000MHZ LVDS	Si515	180 MHz	LVDS
515FCA200M000BAG	Skyworks有源晶振	XTAL OSC VCXO 200.0000MHZ LVDS	Si515	200 MHz	LVDS
515FCA212M500BAG	Skyworks有源晶振	XTAL OSC VCXO 212.5000MHZ LVDS	Si515	212.5 MHz	LVDS
515ACA200M000BAG	Skyworks有源晶振	XTAL OSCILLATOR	Si515	200 MHz	LVPECL
515ACA204M800CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	204.8 MHz	LVPECL
515AAA200M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	200 MHz	LVPECL
515BCA240M000BAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	240 MHz	LVDS
515ACA200M000CAG	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	200 MHz	LVPECL
515AAB167M332AAGR	Skyworks有源晶振	XTAL OSC VCXO 167.3320MHZ LVPECL	Si515	167.332 MHz	LVPECL
515ABA155M520AAGR	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515ACA148M350AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.3500MHZ LVPECL	Si515	148.35 MHz	LVPECL
515ACA155M520AAGR	Skyworks有源晶振	XTAL OSC VCXO 155.5200MHZ LVPECL	Si515	155.52 MHz	LVPECL
515ACA156M254AAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2540MHZ LVPECL	Si515	156.254 MHz	LVPECL
515BAA148M000AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.0000MHZ LVDS	Si515	148 MHz	LVDS
515BAA148M500AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS
515BBA148M350AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.3500MHZ LVDS	Si515	148.35 MHz	LVDS
515BBA148M500AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS
515BCA134M100AAGR	Skyworks Crystal	XTAL OSC VCXO 134.1000MHZ LVDS	Si515	134.1 MHz	LVDS
515BCA144M795AAGR	Skyworks有源晶振	XTAL OSC VCXO 144.7950MHZ LVDS	Si515	144.795 MHz	LVDS
515BCA148M500AAGR	Skyworks有源晶振	XTAL OSC VCXO 148.5000MHZ LVDS	Si515	148.5 MHz	LVDS
515BCA169M406AAGR	Skyworks有源晶振	XTAL OSC VCXO 169.4060MHZ LVDS	Si515	169.406 MHz	LVDS
515EDA156M250AAGR	Skyworks有源晶振	XTAL OSC VCXO 156.2500MHZ LVPECL	Si515	156.25 MHz	LVPECL
515ACA144M575AAGR	Skyworks有源晶振	XTAL OSCILLATOR	Si515	144.575 MHz	LVPECL
515BAA156M250AAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED SINGLE	Si515	156.25 MHz	LVDS
