SUNTSU无源晶振,SXT10410AA48-40.000M,无线局域网晶振

频率：40.000MHz

尺寸：1.2x1.0mm

SUNTSU无源晶振,SXT10410AA48-40.000M,无线局域网晶振，美国进口晶振，Suntsu松图晶振，型号：SXT104，编码为：SXT10410AA48-40.000M，频率为：40.000MHz，小体积晶振尺寸：1.2x1.0mm，四脚贴片晶振，石英晶振，无源晶体，石英晶体谐振器，SMD晶振，贴片石英晶振，无铅晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，耐热及耐环境特点。无源晶振，被广泛应用于：通讯设备，无线网络，蓝牙模块，无线局域网，智能手机，平板电脑，可穿戴设备，数码电子，智能家居等应用。

订购热线：0755-27838351

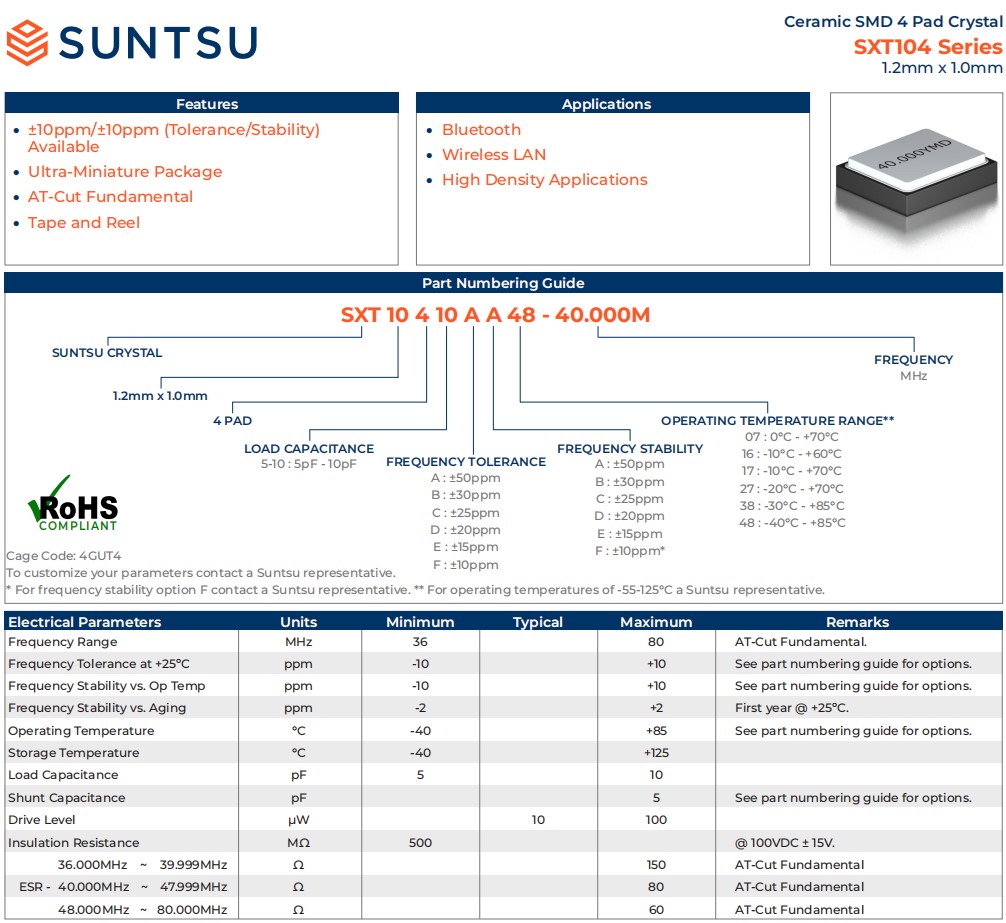

SUNTSU无源晶振,SXT10410AA48-40.000M,无线局域网晶振,参数表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	MHz	40			AT-Cut Fundamental.
Frequency Tolerance at +25ºC	ppm	-10		10	See part numbering guide for options.
Frequency Stability vs. Op Temp	ppm	-10		10	See part numbering guide for options.
Frequency Stability vs. Aging	ppm	-2		2	First year @ +25ºC.
Operating Temperature	°C	-40		85	See part numbering guide for options.
Storage Temperature	°C	-40		125
Load Capacitance	pF	5		10
Shunt Capacitance	pF			5	See part numbering guide for options.
Drive Level	µW		10	100
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
36.000MHz~39.999MHz	Ω			150	AT-Cut Fundamental
ESR- 40.000MHz~ 47.999MHz	Ω			80	AT-Cut Fundamental
48.000MHz~80.000MHz	Ω			60	AT-Cut Fundamental

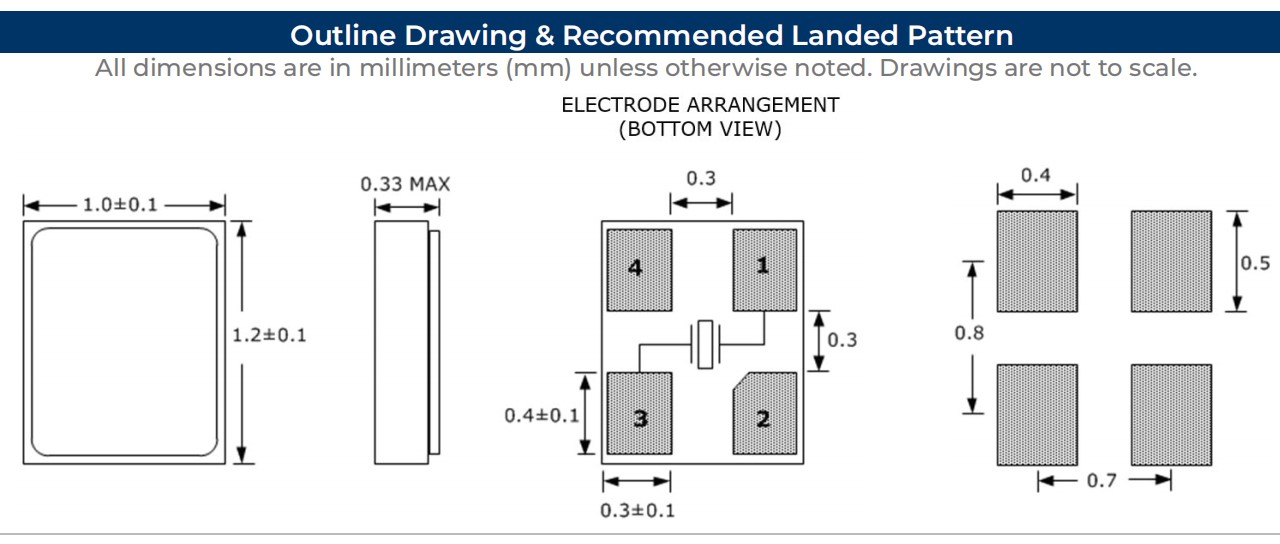

SUNTSU无源晶振,SXT10410AA48-40.000M,无线局域网晶振,尺寸图

SUNTSU无源晶振,SXT10410AA48-40.000M,无线局域网晶振

产品特点：

小型尺寸：1.2x1.0mm石英晶体谐振器

±10ppm/±10ppm（公差/稳定性）可用

超微型包装

AT-Cut基础

磁带和卷轴

进口晶振	包装尺寸	负载	频率容差	频率稳定性	工作稳定	频率
SXT11410AA07-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	24.000M
SXT11410AA07-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	25.000M
SXT11410AA07-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	26.000M
SXT11410AA07-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	27.000M
SXT11410AA07-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	27.120M
SXT11410AA07-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	30.000M
SXT11410AA07-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	32.000M
SXT11410AA07-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	38.400M
SXT11410AA07-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	0°C - +70°C	40.000M
SXT11410AA16-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	24.000M
SXT11410AA16-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	25.000M
SXT11410AA16-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	26.000M
SXT11410AA16-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	27.000M
SXT11410AA16-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	27.120M
SXT11410AA16-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	30.000M
SXT11410AA16-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	32.000M
SXT11410AA16-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	38.400M
SXT11410AA16-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +60°C	40.000M
SXT11410AA17-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	24.000M
SXT11410AA17-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	25.000M
SXT11410AA17-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	26.000M
SXT11410AA17-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	27.000M
SXT11410AA17-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	27.120M
SXT11410AA17-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	30.000M
SXT11410AA17-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	32.000M
SXT11410AA17-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	38.400M
SXT11410AA17-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-10°C - +70°C	40.000M
SXT11410AA27-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	24.000M
SXT11410AA27-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	25.000M
SXT11410AA27-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	26.000M
SXT11410AA27-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	27.000M
SXT11410AA27-27.120M	1.6X1.2 石英晶振	10pF	±50ppm	±50ppm	-20°C - +70°C	27.120M
SXT11410AA27-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	30.000M
SXT11410AA27-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	32.000M
SXT11410AA27-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	38.400M
SXT11410AA27-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-20°C - +70°C	40.000M
SXT11410AA38-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	24.000M
SXT11410AA38-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	25.000M
SXT11410AA38-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	26.000M
SXT11410AA38-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	27.000M
SXT11410AA38-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	27.120M
SXT11410AA38-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	30.000M
SXT11410AA38-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	32.000M
SXT11410AA38-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	38.400M
SXT11410AA38-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-30°C - +85°C	40.000M
SXT11410AA48-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	24.000M
SXT11410AA48-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	25.000M
SXT11410AA48-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	26.000M
SXT11410AA48-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	27.000M
SXT11410AA48-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	27.120M
SXT11410AA48-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	30.000M
SXT11410AA48-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	32.000M
SXT11410AA48-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	38.400M
SXT11410AA48-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±50ppm	±50ppm	-40°C - +85°C	40.000M
SXT11410BA07-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	24.000M
SXT11410BA07-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	25.000M
SXT11410BA07-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	26.000M
SXT11410BA07-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	27.000M
SXT11410BA07-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	27.120M
SXT11410BA07-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	30.000M
SXT11410BA07-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	32.000M
SXT11410BA07-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	38.400M
SXT11410BA07-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	0°C - +70°C	40.000M
SXT11410BA16-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	24.000M
SXT11410BA16-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	25.000M
SXT11410BA16-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	26.000M
SXT11410BA16-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	27.000M
SXT11410BA16-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	27.120M
SXT11410BA16-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	30.000M
SXT11410BA16-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	32.000M
SXT11410BA16-38.400M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	38.400M
SXT11410BA16-40.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +60°C	40.000M
SXT11410BA17-24.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	24.000M
SXT11410BA17-25.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	25.000M
SXT11410BA17-26.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	26.000M
SXT11410BA17-27.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	27.000M
SXT11410BA17-27.120M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	27.120M
SXT11410BA17-30.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	30.000M
SXT11410BA17-32.000M	1.6X1.2 SMD (4 PAD) CRYSTAL	10pF	±30ppm	±50ppm	-10°C - +70°C	32.000M
